Radio Features:

– HF/50MHz band 100W Compact SDR Transceiver

– SDR circuit configuration emphasizes Receiving Performance which is enabled by the same high-resolution A/D converter and FPGA used in YAESU high-end SDR transceivers.

– Powerful RF Front-End and Low Noise Oscillator System enable Phenomenal Multi-Signal Receiving Characteristics*

·RMDR:113dB+ ·BDR:127dB+

·3rd IMDR:102dB+ ·TX Phase Noise: -143dBc/Hz

*Multi-Signal Receiving Characteristic: 14MHz band/2kHz separation *TX Phase Noise: 100W, CW mode

– Band-Pass-Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals

– Built-in High-speed Automatic antenna tuner with 100 channel memory

– Effective QRM rejection afforded by Dual-core 32-bit high speed floating decimal point DSP

– AESS (Acoustic Enhanced Speaker System) with the supplied SP-40 speaker to create High-fidelity audio output

– High Resolution 4.3-inch TFT Color Touch Panel Display

– 3DSS, real-time 3-Dimensional Spectrum Stream presentation

– VMI (VFO Mode Indictor) shows the current operating mode (VFO-A, VFO-B, Memory Mode and Clarifier/Split operation) at a glance

– “PRESET” Mode functions most suitable for FT8 operation

– Equipped with the External Display terminal (DVI-D)

– Two (2) USB Ports (Type-A and Type-B)

– SD Memory Card Slot

– Support the FC-40 Auto Antenna Tuner

– Remote Operation with Network Remote Control System (Available in the near future)

The Yaesu FT-710 is backed by a industry leading 3 year warranty. Country of Origin: Japan

Supplied Accessories:

External Speaker SP-40

Microphone SSM-75E

DC Power Cable w/Fuse Spare Fuse

Operating Manual

Specifications:

Frequency Ranges: RX 30kHz – 75MHz (Operating)

1.8MHz – 29.699999MHz (Specified performance, Amateur bands only)

50MHz – 53.999999MHz (Specified performance, Amateur bands only)

70MHz – 70.499999MHz (Specified performance, UK Amateur bands only)

TX 1.8MHz band – 50MHz band (Amateur bands only)

Modulation Type: A1A(CW), A3E(AM), J3E(LSB,USB), F3E(FM)

Frequency Stability: ±0.5ppm (after 1 minute @ +32°F to +122°F / 0°C to +50°C)

Supply Voltage: DC 13.8V ±15%

RF Power Output: 5W – 100W (5W – 25W : AM Carrier)

Dimensions (W x H x D): 9.4″ x 3.1″ 9.7″ (239 x 80 x 247mm)

Weight (Approx.): 9.92 lbs (4.5kg)

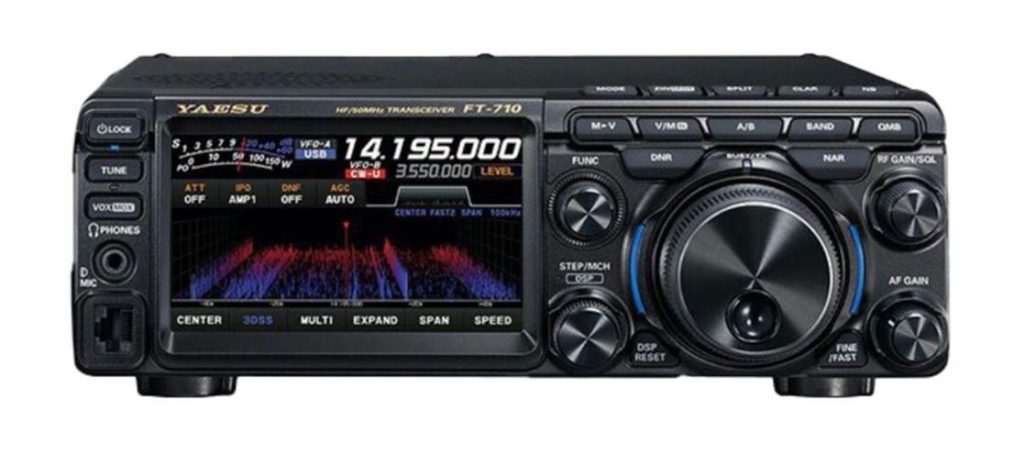

YAESU FT-710 FIELD
